Machine Model:Full Automatic Single Station Extrusion Blow Molding Machine
Raw Material:PE.PP.HDPE,HDPP.PC.PVC.PETG.EVOH........
Production Volume：From 0.1 Liter-16 Liter
Station：Single
Cavity ：From 1 Cavity To 6 Cavity
Production Layer：From 1 Layer To 6 Layer

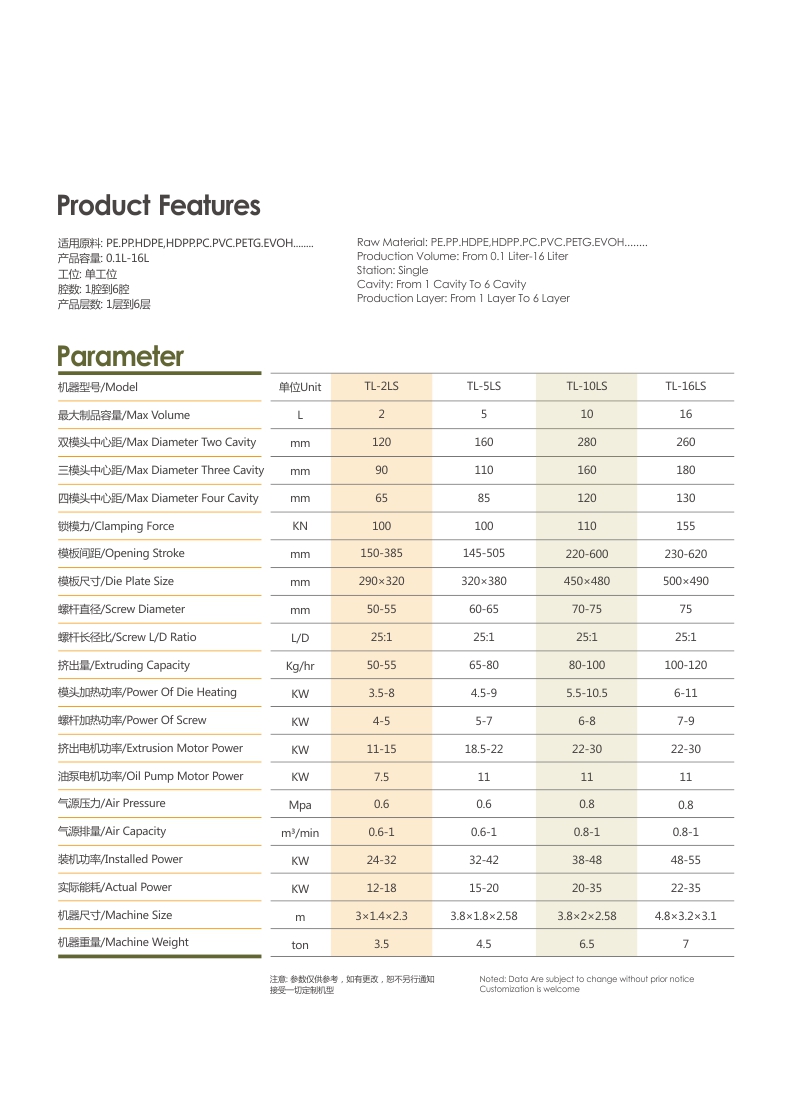

Machine Specification：
|
Model： |
Unit |
TL-2LS |
TL-5LS |
TL-10LS |
TL-16LS |
|
Max Volume |
L |
2 |
5 |
10 |
16 |
|
Max Diameter Two cavity |
mm |
120 |
160 |
280 |
260 |
|
Max Diameter Three cavity |
mm |
90 |
110 |
160 |
180 |
|
Max Diameter Four cavity |
mm |
65 |
85 |
120 |
130 |
|
Clamping Force |
KN |
100 |
100 |
110 |
155 |
|
Opening stroke |
mm |
150-385 |
145-505 |
220-600 |
230-620 |
|
Die Plate Size |
mm |
290x320 |
320×380 |
450×480 |
500×490 |
|
Screw Diameter |
mm |
50-55 |
60-65 |
70-75 |
75 |
|
Screw L/D Ratio |
L/D |
25:1 |
25:1 |
25:1 |
25:1 |
|
Extruding Capacity |
Kg/hr |
50-55 |
65-80 |
80-100 |
100-120 |
|
Power Of Die Heating |
KW |
3.5-8 |
4.5-9 |
5.5-10.5 |
6-11 |
|
Power Of Screw |
KW |
4-5 |
5-7 |
6-8 |
7-9 |
|
Extrusion Motor Power |
kw |
11-15 |
18.5-22 |
22-30 |
22-30 |
|
Oil pump Motor Power |
KW |
7.5 |
11 |
11 |
11 |
|
Air Pressure |
Mpa |
0.6 |
0.6 |
0.8 |
0.8 |
|
Air Capacity |
m³/min |
0.6-1 |
0.6-1 |
0.8-1 |
0.8-1 |
|
Installed Power |
KW |
24-32 |
32-42 |
38-48 |
48-55 |
|
Actual Power |
KW |
12-18 |
15-20 |
20-35 |
22-35 |
|
Machine Size |
m |
3.×1.4x2.3 |
3.8×1.8×2.58 |
3.8×2×2.58 |
4.8*3.2*3.1 |
|
Machine Weight |
ton |
3.5 |
4.5 |
6.5 |
7 |
Noted: Data Are subject to change without prior notice
Customization is welcome
