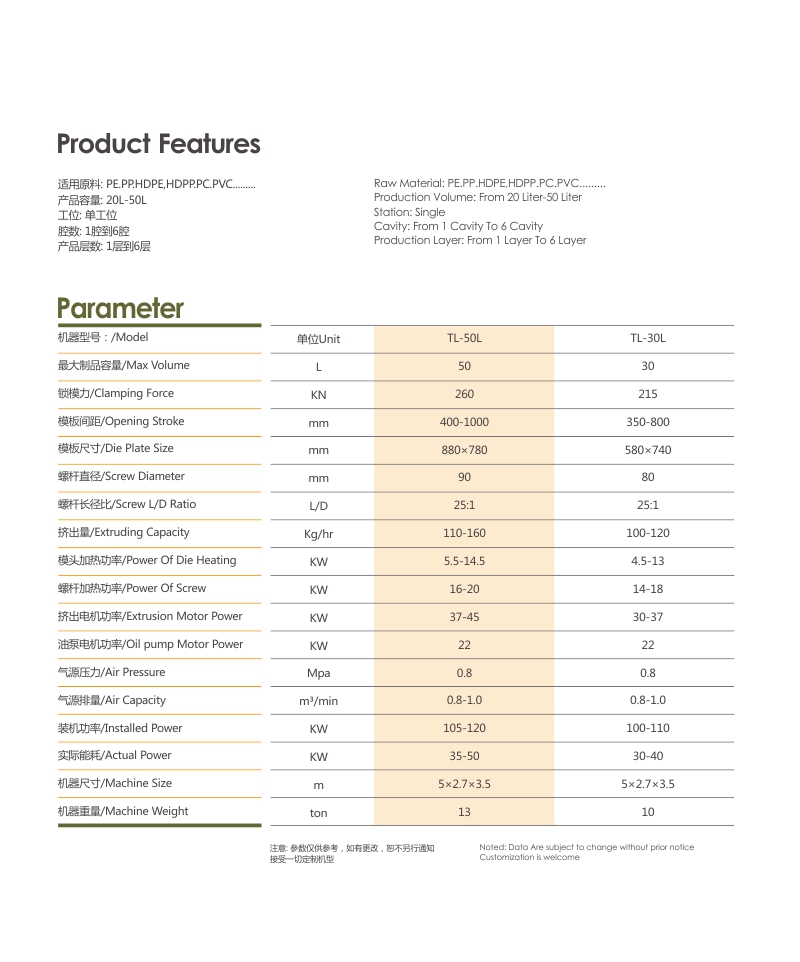

Machine Specification：
|
Model： |
Unit |
TL-30L |
TL-50L |
|
Max Volume |
L |
30 |
50 |
|
Clamping Force |
KN |
215 |
260 |
|
Opening stroke |
mm |
350-800 |
400-1000 |
|
Die Plate Size |
mm |
580×740 |
880×780 |
|
Screw Diameter |
mm |
80 |
90 |
|
Screw L/D Ratio |
L/D |
25:1 |
25:1 |
|
Extruding Capacity |
Kg/hr |
100-120 |
110-160 |
|
Power Of Die Heating |
KW |
4.5-13 |
5.5-14.5 |
|
Power Of Screw |
KW |
14-18 |
16-20 |
|
Extrusion Motor Power |
kw |
30-37 |
37-45 |
|
Oil pump Motor Power |
KW |
22 |
22 |
|
Air Pressure |
Mpa |
0.8 |
0.8 |
|
Air Capacity |
m³/min |
0.8-1.0 |
0.8-1.0 |
|
Installed Power |
KW |
100-110 |
105-120 |
|
Actual Power |
KW |
30-40 |
35-50 |
|
Machine Size |
m |
5×2.7×3.5 |
5×2.7×3.5 |
|
Machine Weight |
ton |
10 |
13 |
Noted: Data Are subject to change without prior noticeCustomization is welcome
